Telefly

SKU: N/A Category:

85980

* The above prices do not include VAT

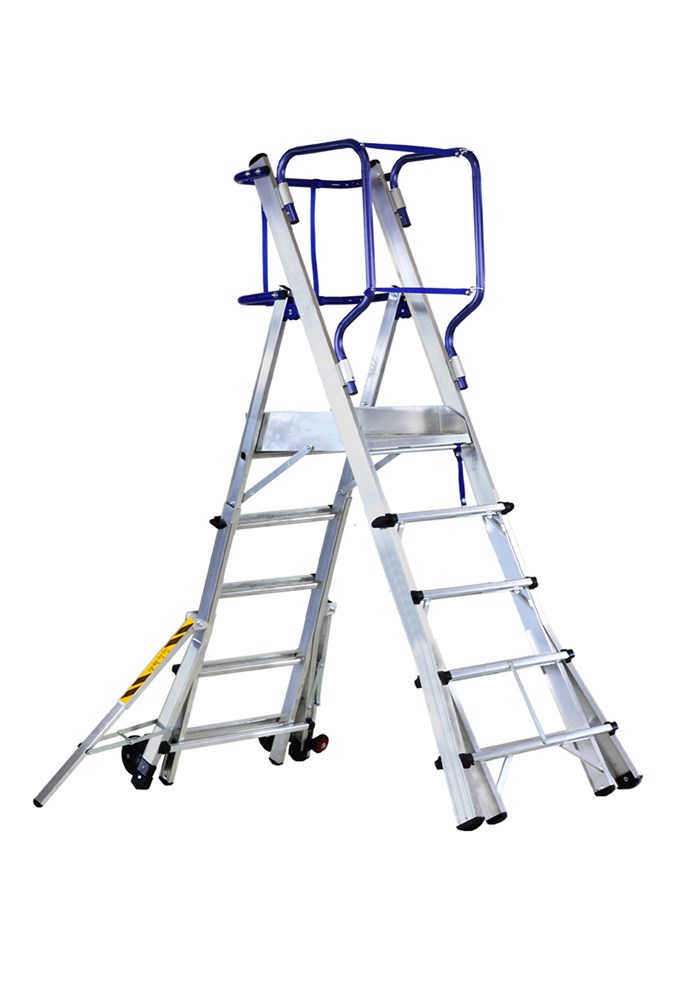

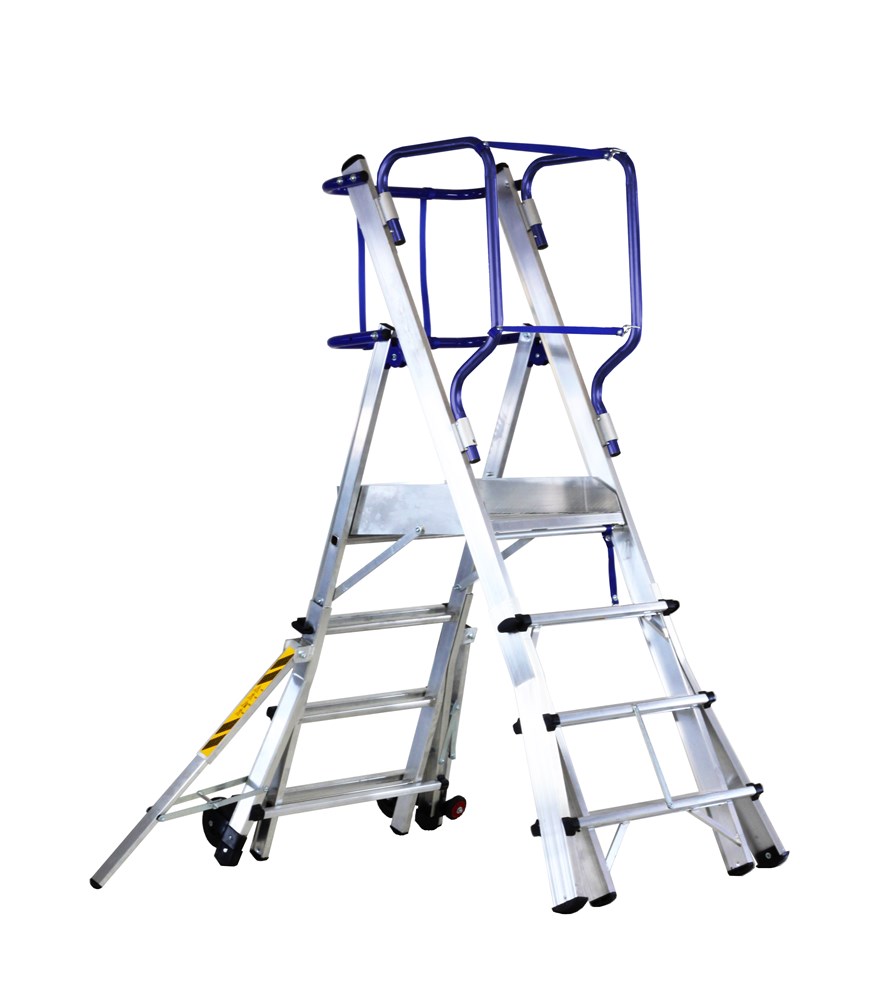

Adjustable telescopic platform stepladder with 360° guardrail protection, reinforced non-skid aluminum platform (60×53 cm) with anti-opening system and 10 cm toeboard, 100 cm guardrail on all 4 sides

It complies with the new European Standards UNIEN131/7 on stepladders and combines all the features of a telescopic ladder with those of a mobile warehouse stepladder, getting a mix of maneuverability, portability and

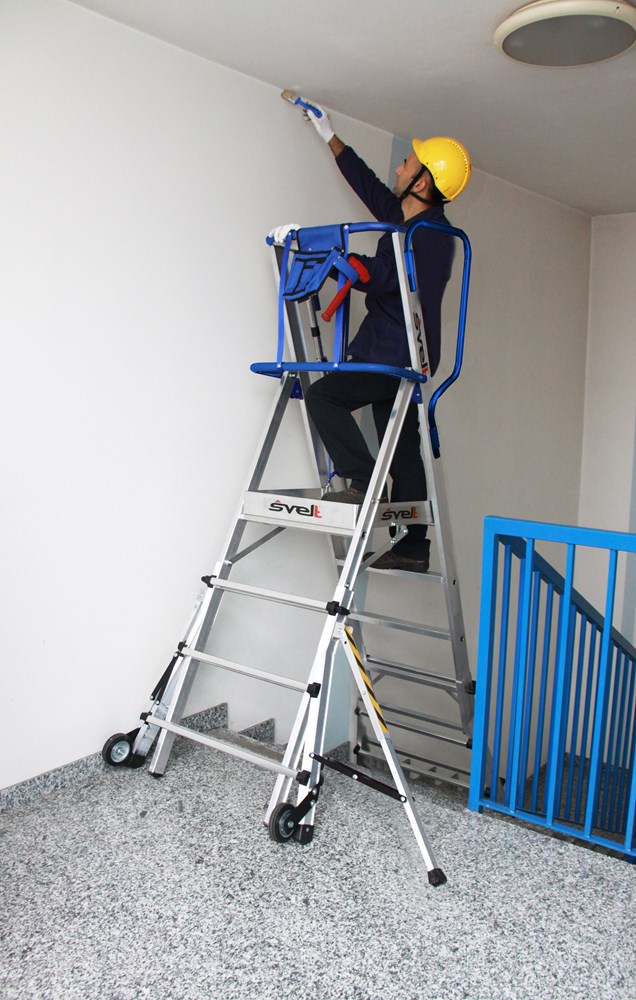

safety that cannot be found in other models. Thanks to the telescopic system you can get 3 different working heights on each of the 4 models and can be used on stairs or steps. It allows easy transportation and can be opened in seconds.

STANDARD EQUIPMENT:

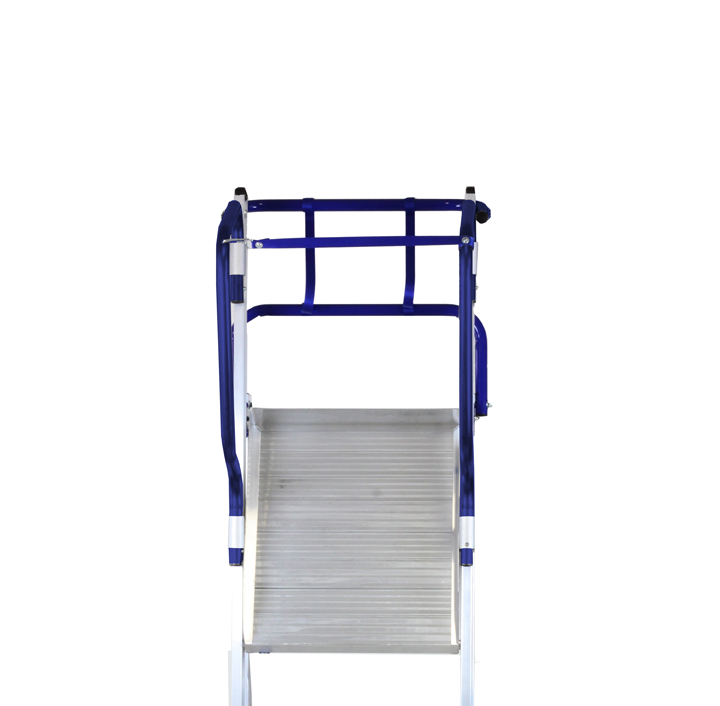

• Reinforced non-skid aluminum platform (60×53 cm) with anti-opening system and 10 cm toeboard
• PVC reinforced non-skid rubber feet with ergonomic design
• Non-skid steps:  min/max  depth 27/134 mm
• Distance between steps 28 cm
• Safety steel/nylon hooks for telescopic elevation
• 100 cm guardrail on all 4 sides
• Integrated lockable telescopic stabilizers (2 opening positions) closed/pos.1/pos.2 cm: 94/154/181
• Enlarged base (maximum stability)
• Anti-opening hook
• It stands when closed
• Patented foldable handrails

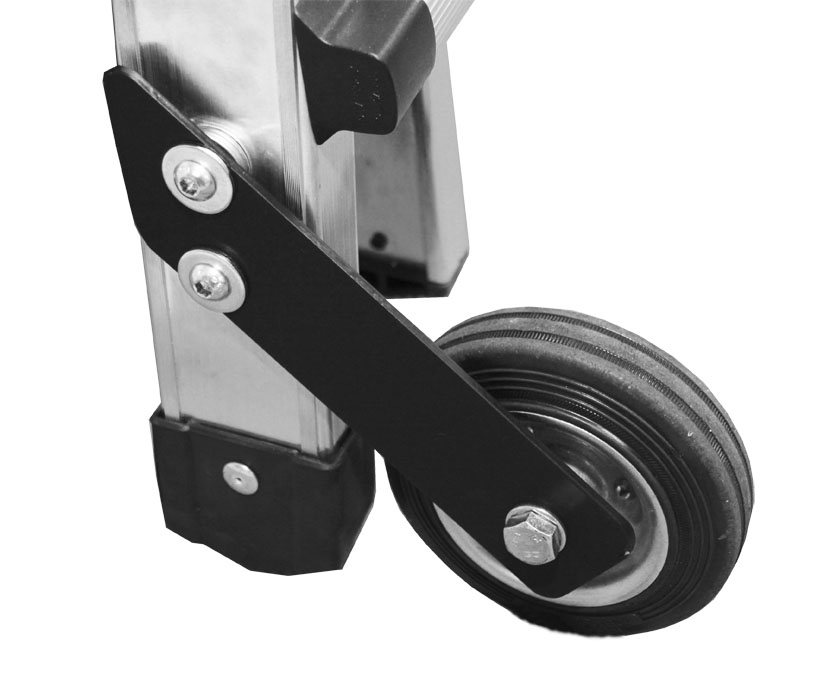

• Wheels for transportation diam. 120 mm
• Climbing ramp 55 cm
• Sveltbag tool-bag
• Steel opening hinges
• Unique in its kind, it is equipped with 80 mm flat steps and 27 mm rungs: when combined they grant a support for feet of 134 cm.
• The stabilizers have 2 opening positions to work in narrow spaces.

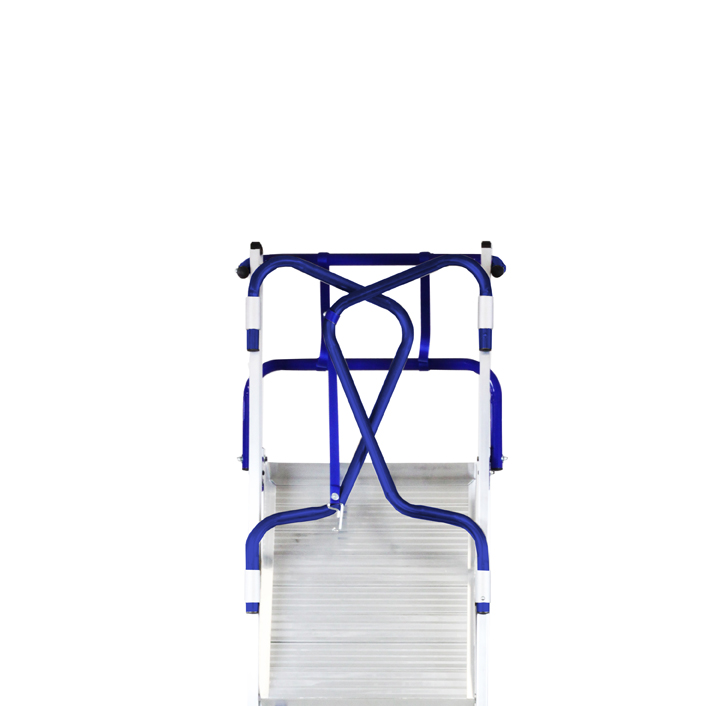

• Handrails are patented. They can be folded with just one  gesture and allow to move the ladder in minimum amount of space.
• The wheels allows the operator to go through narrow doors with the ladder in vertical position.

Manual : Flyer TELEFLY

TECHNICAL FEATURES
Cod. Steps n. Platform height min. m Total height max. m Working height max. m
Dimensions
on the ground
cm
Weight Kg
Folded
height m
SFLYTELE04 4 1,00 1,50 3,50 89х199 28 2,26
SFLYTELE05 5 1,25 1,75 3,75 89х221 31 2,54
SFLYTELE06 6 1,50 2,00 4,00 89х244 34 2,82
SFLYTELEC4 Optional handrails cm 120 (4 steps ladders)
SFLYTELEC5 Optional handrails cm 150 (5 steps ladders)
SFLYTELEC6 Optional handrails cm 180 (6 steps ladders)
